0.5t Vacuum Honey Concentrator

By electric heating or steam heating structure, automatic temperature control, vacuum feed, use the device not only can concentrate can sterilization, this equipment adopts 304 stainless steel, easy to operate, reliable operation, high efficiency, vacuum suction honey, can achieve higher vacuum degree and low concentrated temperature, is the ideal of honey processing equipment. Equipment includes: preheating tank, filters, concentrator, condenser and vacuum pump.


Availability:


Inquire Add to Basket

Model: FM400
Brand: SYT
Model4: FM-600 FM-400

Product Description

Description of honey processing mahine

By electric heating or steam heating structure, automatic temperature control, vacuum feed, use the device not only can concentrate can sterilization, this equipment adopts 304 stainless steel, easy to operate, reliable operation, high efficiency, vacuum suction honey, can achieve higher vacuum degree and low concentrated temperature, is the ideal of honey processing equipment.

Equipment includes: preheating tank, filters, concentrator, condenser and vacuum pump.

Function: Evaporating moisture from honey.

honey processing line

Structural drawing of honey processing machine:

HONEY MACHINE FM600

Technical parameters of vacuum honey concentrator

Model	FM600	FM400
Production capacity	1.2-1.5 t/8h	0.5 t/8h
Machine diameter	17506001660 mm	16005001555 mm
Tank diameter	600 mm	400 mm
Thank height	600 mm	600 mm
The overall volume	140 L	70 L
Effective volume	120 L	60 L
Preheat tank power	6 KW	6 KW
Volume concentration tank power	9 KW	6 KW
Vacuum pump power	1.5 KW	1.5 KW

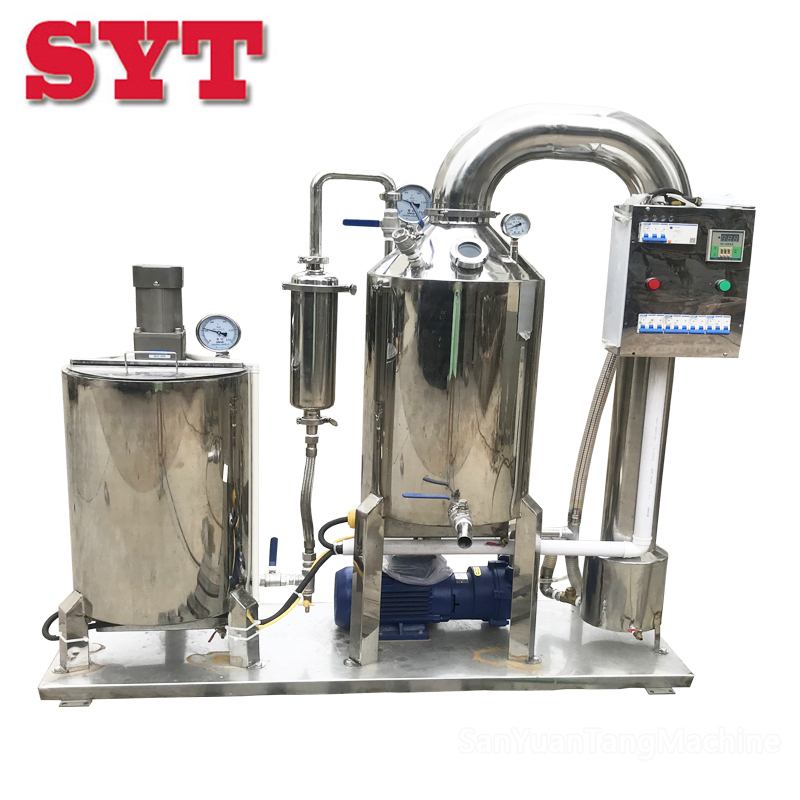

Photos of vacuum honey concentrator

honey processing equipment

honey concentrator 6

honey processing machine 3

honey concentrator 1
