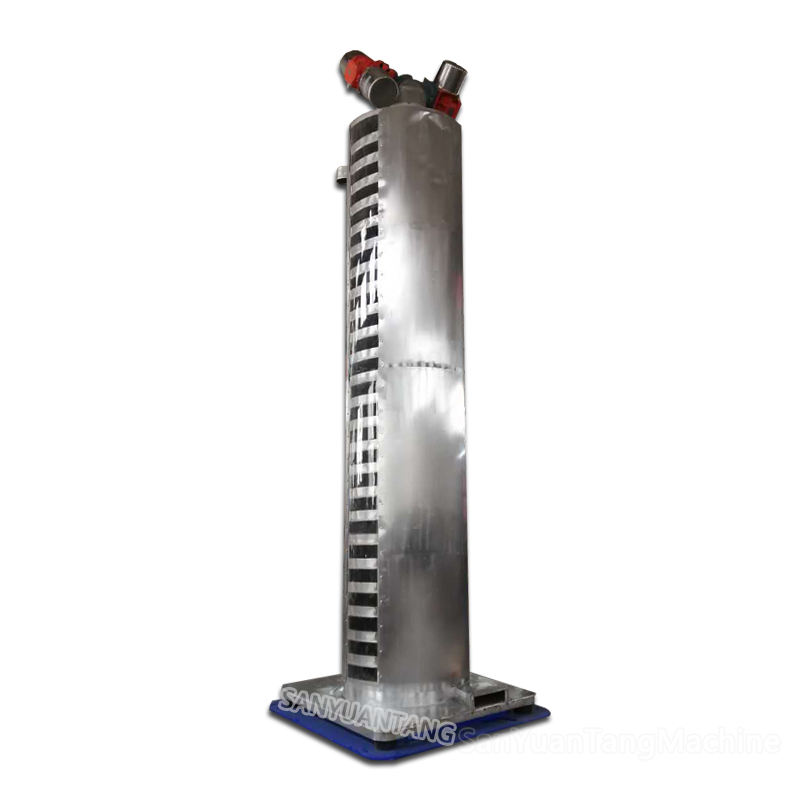

Cooling Vibration Spiral Conveyor

Vertical vibration spiral elevator can be also called as vertical conveyor, spiral conveyor, spiral elevator etc.

Vertical conveyor is applicable to convey and lift materiels of powder, block and short fiber. The materiels can not only be lifted, but also be dried and cooled during the process of lifting.
  • SZC
  • SYT
  • SZC300  SZC500  SZC600  SZC800  SZC900  SZC1200  DZC1500  DZC1800

Description of vertical vibration spiral elevator

Vertical vibration spiral elevator can be also called as vertical conveyor, spiral conveyor, spiral elevator etc.



Vertical conveyor is applicable to convey and lift materiels of powder, block and short fiber. The materiels can not only be lifted, but also be dried and cooled during the process of lifting.



According to customer's special request, vertical conveyor can also be designed to classify  the materials and convey flammable and explosive materials.



Other functions can be realized by tailor-made service e.g heating,cooling,drying, spreading etc :water cooling vibrating spiral conveyor



Structure drawing of vibration spiral elevator:

cooling conveyor

Technical parameters of Vibration Spiral Conveyor



Model

Diameter of Spiral chute(mm)

Lifting height(m)

Speed(r/min)

Double amplitude(mm)

Power(kw)

SZC300

300

≤4.0











960

6-8

2*0.4

SZC500

500

≤6.0

6-8

2*0.75

SZC600

600

≤8.0

6-8

2*1.5

SZC800

800

≤8.0

6-8

2*2.2

SZC900

900

≤8.0

6-8

2*3.0

SZC1200

1200

≤8.0

6-8

2*4.5

SZC1500

1500

≤8.0

6-8

2*5.5

SZC1800

1800

≤8.0

6-8






Application of Vertical Lift Conveyor
Food industry:sugar powder,starch,milk powder,egg powder,rice powder,food additive,seasoning,spice etc.
Chemical industry:fertilizer,detergent powder,sodium carbonate,talcum powder,dyestuff,rubber,PVC resin,pigment,cosmetics,coatings,Chinese medicine powder,fiber etc.
Metal, metallurgy industry:copper powder,nickle powder,aluminum powder,copper granule,ore alloy powder,welding powder,battery material, abrasive powder, fire-proof material etc.



Photos

DZS1000-3000


vibrating conveyor 5


vibration spiral elevator

vertical spiral elevator 5

If you want to learn more about conveyor equipment , please visit to www.sanyuantangcn.com/Conveyor-equipment-pl3384404.html


Note:

We customize conveyors in various specification, so our product introduction and display is not final, just for your reference. If you need to order, please send me your specification request and drawing, we shall quote you at the earliest time.

Welcome friends from all walks of life to visit, guide and business negotiation.
