HXSY -1200 HXSY -1600 HXSY -2000 HXSY -2200 HXSY -2600

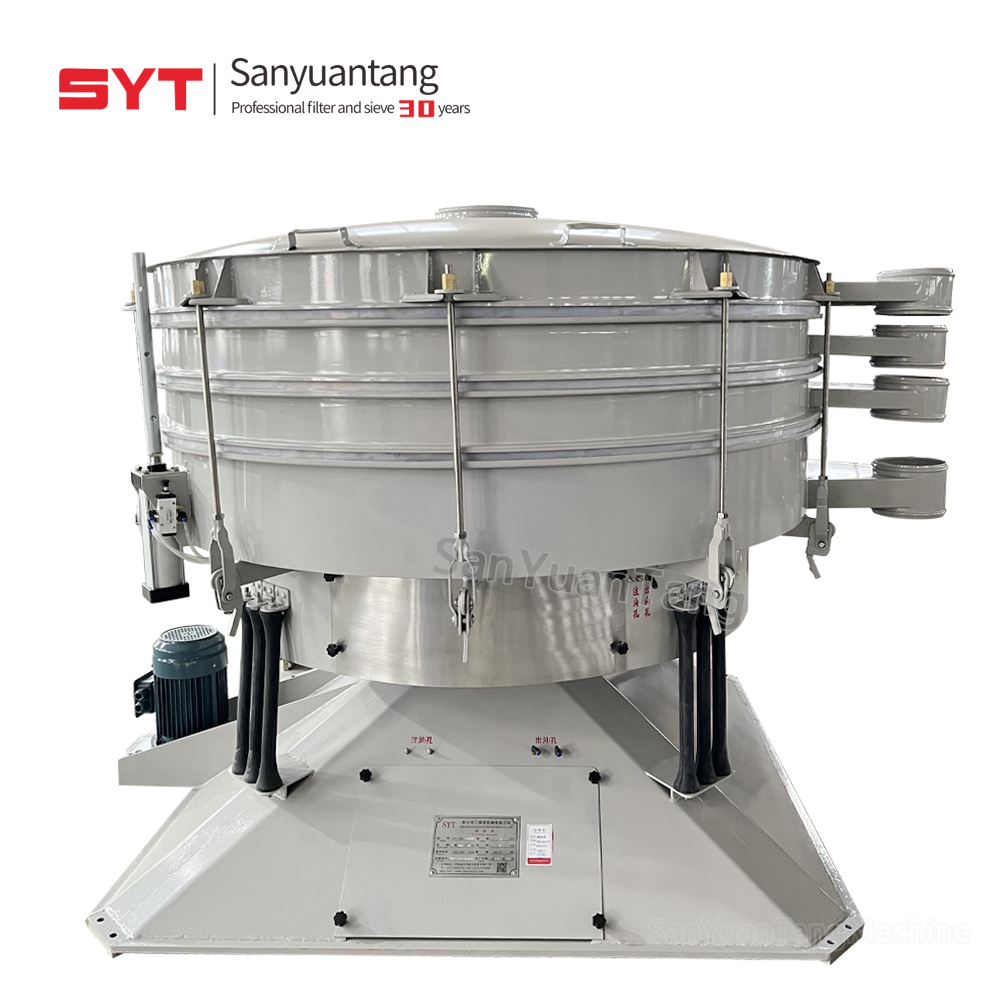

The design of the circular tumbler screen is a high-efficiency screening machine specially designed to meet the needs of large-volume, higher-screening manufacturers. The simplest screening is to use both eyes to screen with both hands. Simulation, it is currently the most effective simulation of the effective principle of manual screening movement (screening accuracy, efficiency, screen life is 5-10 times that of conventional round screen), which meets all fine and ultra-fine powders and particles Shaped materials, especially suitable for difficult materials.
Chemistry, food and spices, plastics, mining, medicine, wood and plywood, metallurgy, rubber, feed, fertilizer, sugar and salt industry, recycling industry.
The adjustment of the meridional and tangential angles can adjust the involute movement of the screen. This movement enables the material to travel a relatively long path on a small area to improve the screening accuracy. The unique design allows the material to be online The moving netting time is longer than other screen machines, and the screening output is relatively improved.
Model | Availability of screening area (m*m) | Screen slope (angel) | Grain size(mm) | Double amplitude (mm) | Power (kw) | Process capacity (t/h) |
HXSY -1000 | 0.71 | 0-10 | ≦10 | 5-8 | 1.5 | 8-15 |
HXSY -1200 | 1.11 | 5-8 | 2.2 | 15-30 | ||
HXSY -1600 | 1.83 | 5-8 | 2.2/4 | 25-50 | ||
HXSY -2000 | 2.62 | 5-8 | 2.2/4 | 30-60 | ||
HXSY -2200 | 3.46 | 3/4 | 35-60 | |||
HXSY -2600 | 5.31 | 5-8 | 5.5 | 45-60 |
Versatility: Tumbler screen can handle a wide range of materials, including dry and wet powders, granular materials, and even difficult-to-screen products like sticky or fibrous materials.
Gentle screening: The tumbling action of the machine ensures gentle and non-aggressive screening, making it suitable for fragile and delicate products that may be damaged by other screening techniques.
High capacity: Tumbler screening machine can handle large volumes of material due to their high specific screening capacity. This makes them suitable for applications where high throughput is required.
Long service life: The robust construction of tumbler screening machines ensures their durability and long service life, even in demanding industrial environments.
Easy maintenance: Tumbler screening machines are designed with user-friendly maintenance features, such as easy access to the sieves and simple cleaning procedures, making maintenance tasks quick and efficient.
Energy efficiency: Compared to other screening techniques, tumbler screens typically consume less energy, resulting in cost savings and reduced environmental impact.
The proper selection of the tumbler vibrating screen depends on the material, number of layers, every mesh size, capacity, material moisture, viscous and corrosive etc:
1. Screening material : _____
2. How many layer(s):_______
3. Every mesh size:______ mesh . ______ mesh.______ mesh.
4. Capacity: :________t/h
5. Moisture, viscous, corrosive ________
6. Voltage:______V, Frequency:______HZ, 3 phase
7. Mild steel(Q235A), SS304, or SS316
