INCLINED BELT CONVEYOR
Sanyuantang inclined belt conveyor super-strong structure makes it longwearing and not deformed.
Enclose 4 wheels, convenient to move.
Technical Parameters Of Inclined Belt Conveyor
| Belt width(mm) | 300 | 400 | 500 | 650 | 800 | ||||||||
| Sidewall height(mm) | 40 | 60 | 60 | 80 | 80 | 120 | 120 | 160 | 120 | 160 | 200 | 240 | |
| Conveying Capacity: Q3/h | 30° | 15 | 14 | 20 | 34 | 46 | 71 | 104 | 120 | 128 | 157 | 195 | 235 |
| 45° | 11 | 10 | 14 | 26 | 35 | 57 | 83 | 97 | 102 | 127 | 157 | 195 | |
| 60° | 8 | 7 | 10 | 18 | 25 | 40 | 58 | 69 | 72 | 90 | 112 | 142 | |
Main Features of inclined belt conveyor
(1) Frame----Export food hygiene SUS304 or carbon steel as your demand.
(2) Conveyor belt----Food grade rubber, PVC, PU or other material.
(3) Driving device----electric motor or electric drum
(4) Belt speed----Fixed speed or adjustable speed(frequency converter)

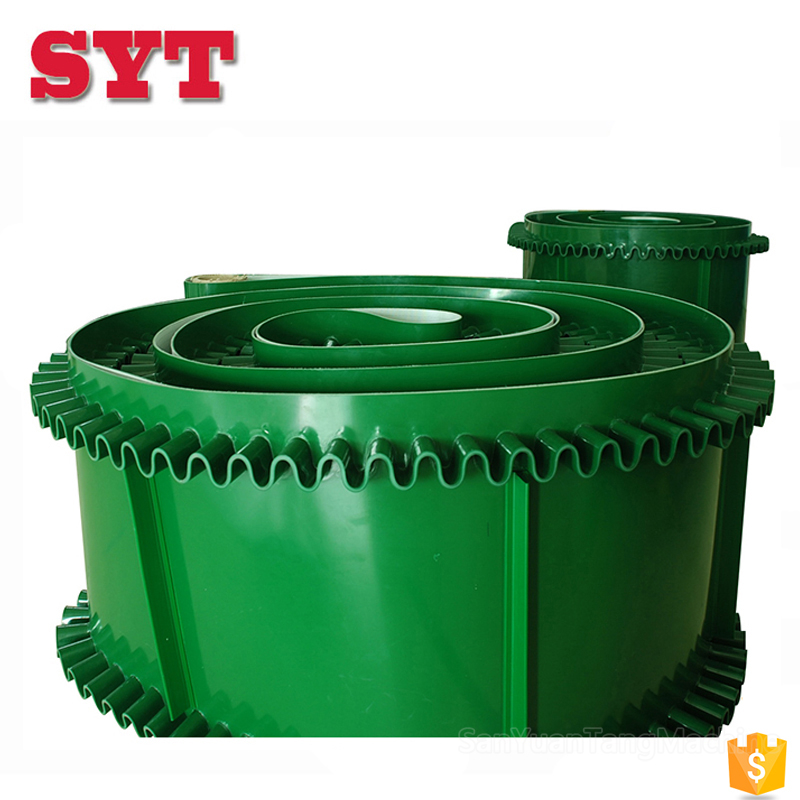

Photos of belt conveyors
FAQ of belt conveyors:
1.What material will you conveying for?
2.What is the belt material? width? length?
3.How long transport distance? Conveying height? Level or tilting?
4.What's your production capacity per hour?
We customize conveyors in various specification, so our product introduction and display is not final, just for your reference. If you need to order, please send me your specification request and drawing, we shall quote you at the earliest time.
More conveyor equipment , please click ：www.sanyuantangcn.com/Conveyor-equipment-pl3384404.html
